Weighing Systems for Utility Vehicles

Click image to enlarge
Price Each: Call for Price
Quantity:
Product PDF

Utility Truck Scales Description

Utility operations must ensure their industrial trucks comply with weight restrictions set by the Department of Transportation. Improperly loaded vehicles, or those that exceed the weight rating, have a dramatic effect on steering, maneuverability, acceleration and overall safety. Weight and balance procedures ensure that work trucks going into the field are safe for the operator and for the communities they serve.

At Intercomp, we manufacture accurate weighing and measurement solutions for Utility Trucks. If you have specific questions regarding our Portable, In-Ground, or WIM scale options contact us for more information.

Intercomp Truck Scales for Utility Fleet Advantages

Whether your facility requires portable or in-ground truck scales, Intercomp scales provide many beneficial qualities. Each of our scale systems are built to provide accurate weight results and efficiencies that are ideal for weighing utility fleets.
Additional advantages include:
  • Weigh-In-Motion - Allows traffic to keep moving, which expedites the weighing process.
  • Weight Compliance Benefits – Keeps utility fleets in compliance with commercial vehicle weight restrictions, which can save significant amounts of money that would otherwise be spent on fines.
  • Safety Benefits – When loading equipment on a utility truck, knowing vehicle weights before, during and after will assist in providing a safe, reliable, and compliant vehicle.

Utility Truck Scale Options

Intercomp builds commercial truck scales to the industry’s highest quality standards. We provide several scale options across a range of platform sizes and capacities to meet your specific utility truck weighing requirements. No matter the size of your facility, Intercomp provides a range of industrial truck scales that produce accurate results for you.

Get in touch with our sales team to determine which one of our weighing solutions is the best option for your business.

Up Arrow Top

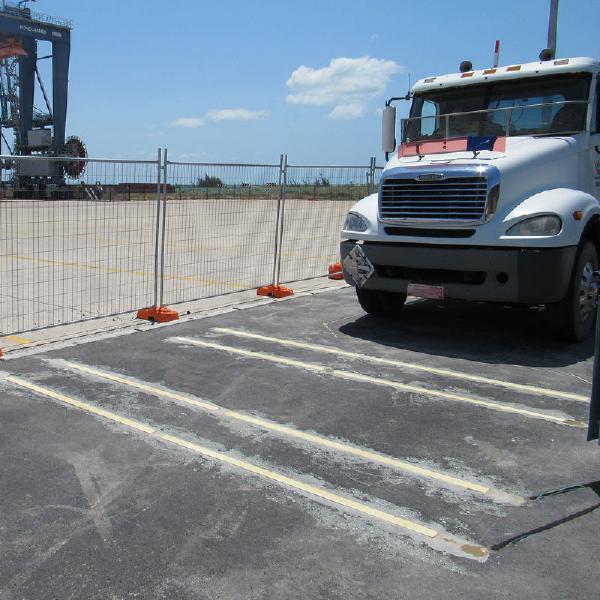

WIM Strip Sensors for Utility Vehicles

Typical Sensor Configurations for Entry/Exit Gates

Strip-Sensors-6-inline Strip-Sensors-8-inline












Intercomp’s strain gauge-based Strip Sensors are an effective alternative to traditional static truck scales, especially at sites that require higher minimum vehicle speeds or when significant space limitations exist.  Strip Sensors allow for increased throughput for high-traffic applications, and provide reduced installation and operation cost when compared to alternative scale systems
  • OIML R134 Weigh-In-Motion Certified for Accuracy
  • Constructed Using Strain Gauge Load Cells in Sealed Enclosure
  • Accurate weight results up to high speeds
  • Used for Weight Compliance, Inventory Tracking, Ports and Other High-Traffic Applications
  • Use to Address SOLAS Verified Gross Mass Container Requirements
  • Cost effective & Easy to Maintain
LS-WIM® Low Speed Scale


Strip Sensors

View Product

Up Arrow Top

Portable WIM Scales for Utility Vehicles

portable weigh in motion truck scales












Portable WIM is a hybrid system that brings together our experience in both WIM technology and our long history of developing innovative portable truck scales.

Portable WIM Scales can operate in dynamic or static mode:
  • System includes two scales, roll-up ramps and indicator
  • Deployable by two people in less than 15 minutes
  • Capture individual axle and total vehicle weight
  • 2-3% dynamic accuracy, ±0.5% static accuracy
  • Push-button conversion to static mode
  • RFX®; Wireless Weighing with cable backup
  • 60,000 lb (30,000 kg) individual axle capacity
LS630-WIM™ Low Speed Portable WIM Scale


LS630-WIM™ Low Speed Portable WIM Scale

View Product

Up Arrow Top

Low Profile Portable Scales for Utility Vehicles

Portable Wheel Weigh Pads Portable Wheel Weigh Pads Portable Wheel Weigh Pads

Low-Profile, 1.5-inch high scale pad and dual-wide size eases vehicle placement to ensure accurate measurement.

Weigh a variety of vehicles in many environments:
  • Easily transported and stored
  • Weigh light-duty vehicles to heavy-duty trucks and equipment
  • Determine vehicle weight distribution left/right & front/back
  • NTEP (National Type Evaluation Program) Class IIII certified part numbers available
  • RFX®; Wireless Weighing compatible
  • Accuracy ±1%
  • Solar recharging
  • Integrated, backlit LCD indicators with totalizing capability
  • Interface with remote indicator or PC with IntercompWeigh software
LS630-WIM™ Low Speed Portable WIM Scale


Low-Profile Portable Scales

View Product

Up Arrow Top

Semi-Portable Truck Scales for Utility Vehicles

Axle Weigh Scale Pads
Axle scales allow for maximum customization to accommodate various vehicles. These semi-portable scales are designed for prolonged deployment in a variety of locations, and the low-profile design of this scale makes it possible to permanently install in a properly-drained scale pit.

Higher throughput using similarly configured vehicles:
  • Can be installed into pit with proper drainage
  • Integrate into existing scale systems
  • NTEP (National Type Evaluation Program) Class IIII-certified part numbers available
  • Signal outputs include RFX Wireless, digital and analog
  • Highly customizable
  • Weather sealed for prolonged outdoor use
  • Aluminum or steel construction
LS630-WIM™ Low Speed Portable WIM Scale


AX900™ Axle Scales

View Product

Up Arrow Top

App Notes for Utility Truck Scales

Portable Scales for Utility Vehicles

Intercomp’s portable scales are designed to be easily transported and can be set up at various locations, allowing utility truck operators to monitor their weight compliance on the go.

Strip Sensors for Utility Vehicles

The service fleet of a major power utility includes numerous vehicle classes and payloads subject to gross vehicle and gross axle weighing for transportation and safety requirements. Intercomp’s Weigh-In-Motion (WIM) System helps keep this fleet in compliance and responsive.

Up Arrow Top

Utility Truck Scales Overview

Contact Intercomp for Precision Utility Truck Scales Today

At Intercomp, we offer the most comprehensive line of utility truck scales in the industry. Our truck scales provide excellent compliance benefits by efficiently checking truck weights before they leave the facility, which can save thousands in weight fines.

Contact our sales team for more information regarding our advanced commercial semi-truck scale options, or for further pricing details today. Intercomp is the industry’s most trusted supplier of premium Commercial Truck Scales.

Up Arrow Top

Resource Library

Publications We have many other published resources including a variety of literature, technical articles, application notes, videos, vehicle scale basics guides, and certification notes.

Please VISIT OUR RESOURCE LIBRARY to learn more about Axle Scale applications, examples, case studies and specifications.
