Weighing Systems for Autonomous Trucks

Click image to enlarge
Price Each: Call for Price
Quantity:
Product Video

Autonomous Truck Scales Description

There is already considerable investment into safety testing, development, and validation of automated driving systems. Because vehicle weights have a dramatic effect on steering, maneuverability, braking and acceleration, weight and balance procedures are a critical part of any program.

At Intercomp, we manufacture accurate weighing and measurement solutions for autonomous vehicle advancement. Our Portable, In-Ground, and Weigh-In-Motion (WIM) based truck scales aid in the research and development efforts of the Autonomous Trucking industry. If you have specific questions regarding our Portable, In-Ground, or WIM scale options get in touch with us for more information regarding your specific self-driving truck scale requirements.

Intercomp Truck Scales for Autonomous Vehicles

Whether your facility requires Portable or in-ground Weigh-In-Motion (WIM) truck scales, Intercomp scales for autonomous trucks provide many beneficial qualities. Each of our scale systems are built to provide accurate weight results and efficiencies that are ideal for research and development. Additional advantages include:
  • Safety Benefits – When designing a self-driving truck, knowing vehicle weights during the development phase will assist in providing a safe, reliable and compliant vehicle.

Truck Scale Options

Intercomp’s truck scales are built to the industry’s highest quality standards. We provide several scale options across a range of platform sizes and capacities to meet your specific autonomous truck requirements. No matter the size of your facility, Intercomp provides a range of commercial semi-truck scales that produce accurate results for you.

Get in touch with our sales team to determine which one of our weighing solutions is the best option for your business.


Up Arrow Top

LTR788™ Scale for Autonomous Trucks

LTR788-Illustration

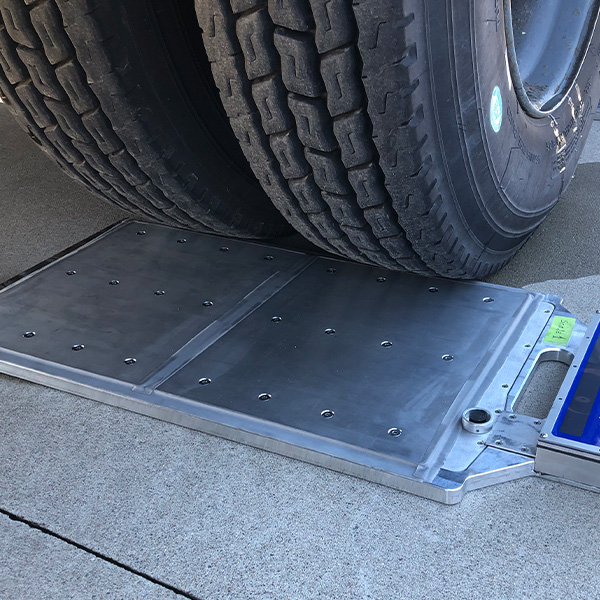

The LTR788™ Dual Wheel Load Scale was created for direct measurement of individual tire loading in a dual-tire configuration. The LTR788™ enables the identification of unequal weight distribution within a dual wheel. Tire loading and tire conditions impact fuel economy and braking distance, which are critical components of research and development in autonomous vehicles.

Incorporating fully electronic load cells, the portable LTR788™ dual tire truck scales use technology that actively compensates for temperature, resulting in fast, stable and repeatable weighing.  Additional LTR788™ Portable Scale benefits include:
  • Display Individual Wheel Weights within Dual Tire Configurations
  • 26-inch Wide Platform for Dual Tires
  • Total Scale Capacity of 30,000 lb (15,000 kg); 15,000 lb (6,800 kg) Per Pad
  • In-scale Solar Charging Decreases Reliance on Batteries
LTR788™ Dual Wheel Load Scale


LTR788™ Dual Wheel Load Scale

View Product

Up Arrow Top

LP788™ Scales for Autonomous Trucks

Portable Wheel Weigh Pads Portable Wheel Weigh Pads Portable Wheel Weigh Pads

Low-Profile, 1.5-inch high scale pad and dual-wide size eases vehicle placement to ensure accurate measurement.

Weigh a variety of vehicles in many environments:
  • Easily transported and stored
  • Weigh light-duty vehicles to heavy-duty trucks and equipment
  • Determine vehicle weight distribution left/right & front/back
  • NTEP (National Type Evaluation Program) Class IIII certified part numbers available
  • RFX®; Wireless Weighing compatible
  • Accuracy ±1%
  • Solar recharging
  • Integrated, backlit LCD indicators with totalizing capability
  • Interface with remote indicator or PC with IntercompWeigh software



LP788™ Portable Scale


LP788™ Portable Scale

View Product

Up Arrow Top

LS-WIM® Scales for Autonomous Trucks

In Ground weigh in motion truck scale












Intercomp’s in-ground WIM systems track and display individual axle weights in addition to gross vehicle weight (GVW). With a full-length truck scale, this data is hard to collect. Since the truck doesn’t have to come to a complete stop for accurate weighing, traffic is able to keep moving, increasing efficiency and decreasing costs. The smaller weighbridge of the WIM system also requires less effort and time to install and maintain.

Capture vehicle weight dynamically at a permanent facility:
  • Small installation and operational footprint compared to full-length truck scale
  • 1-2% dynamic accuracy at low speeds
  • Static Accuracy ±0.1%
  • Available components combine into standalone system
  • Integration into existing gate systems, if applicable
  • Capture individual axle and total vehicle weight
  • Available in capacities up to 100,000 lb (45,000 kg)
LS-WIM® Low Speed Scale


LS-WIM® Low Speed WIM Scale

View Product

Up Arrow Top

LS630-WIM™ Scales for Self-Driving Trucks

portable weigh in motion truck scales












Portable WIM is a hybrid system that brings together our experience in both WIM technology and our long history of developing innovative portable truck scales. Our WIM portable scales are ideal for lower traffic facilities that may have entrance and exit points that regularly change. When compared with in-ground traditional static weight scales, our Portable WIM Freight Terminal Scales have a lower upfront cost of ownership and lower operational costs.
  • System includes two scales, roll-up ramps and indicator
  • Portable WIM Scales can operate in dynamic or static mode
  • Deployable in less than 15 minutes
  • Capture individual axle and total vehicle weight
  • 2-3% dynamic accuracy, ±0.5% static accuracy
  • Push-button conversion to static mode
  • RFX®; Wireless Weighing with cable backup
  • 60,000 lb (30,000 kg) individual axle capacity
LS630-WIM™ Low Speed Portable WIM Scale


LS630-WIM™ Low Speed Portable WIM Scale

View Product

Up Arrow Top

App Notes for Autonomous Truck Scales

Portable WIM Scales for Autonomous Trucks

Portable WIM scales allow for temporary weighing sites to be set up wherever they are needed and increase efficiency and throughput of collecting vehicle weights. Due to its portability, certified accuracy, and versatility of operation in WIM and static modes, the LS630-WIM™ Portable Weigh-In-Motion scale system is used worldwide for portable weighing operations. The following applications reflect the use potential of Intercomp’s Portable Weigh-In-Motion Scales.

LS-WIM™ Axle Scales for Autonomous Trucks

Intercomp Low-Speed Weigh-In-Motion (LS-WIM®) Axle Scales provide accurate dynamic weighing across many applications throughout the world. The performance, reliability and longevity of Intercomp’s LS-WIM® Axle Scales provide an excellent return on investment for precision WIM technology.

Dual Wheel Load Scales for Autonomous Trucks

The LTR788™ Dual Wheel Load Scale was created for direct measurement of individual tire loading in a dual-tire configuration. Until now, there was no method to accurately weigh the tires individuallly, with the current procedure being to weigh both tires and divide by two. Tire loading and tire conditions impact fuel economy and braking distance, and tire failure can lead to accidents and debris on roads.

Up Arrow Top

Products Related to Scales for Self-Driving Trucks

We Also Recommend

Up Arrow Top

Autonomous Truck Scales Overview

Contact Intercomp for Precision Truck Scales Today

At Intercomp, we offer the most comprehensive line of truck scales in the industry. Our truck weighing scales can quickly and accurately weigh trucks wherever weighing operations are needed.

Contact our sales team for further pricing details or for more information regarding our accurate and dependable Truck Scale options. Intercomp is the industry’s most trusted supplier of technologically advanced Truck Scales.
