Law Enforcement Scale Applications

Weigh-In-Motion Scales for Ports and Gates

Click image to enlarge
Price Each: Call for Price
Quantity:

WIM Scales for Ports & Gates Description

Screening for vehicle and cargo weights allows for identification of unloaded, loaded, and overloaded vehicles.  When integrated into existing processes, dynamic weighbridges with Weigh-In-Motion technology allows for rapid processing of vehicles without stoppage and delays.  Axle and Gross Vehicle Weight (GVW) can be used to identify overweight conditions where cargo needs to be shifted or removed.  For exporters, IMO/SOLAS Method 1 weighing can be conducted by automated weight calculations to ensure compliance.

Get in touch with our sales team to learn about Weigh-In-Motion for Ports and Gates.

In-Ground WIM Scales for Ports & Gates Advantages

Permanently installed Weigh-In-Motion Scales save time by keeping traffic moving while accurately capturing weight related data at entry/exit ports, freight terminals, or toll and commercial weigh stations.
  • Installation and Maintenance are Less Expensive than Standard Truck Scales
  • Collect Weight Data Without Stopping the Vehicle
  • OIML R134 Certified



WIM Strip Sensors for Gates & Ports

Typical Sensor Configuration
Strip Sensors 8 inline 2

Strip sensors for ports and gates incorporate strain gauge technology:
  • WIM Site Installation Employs Eight Sensors, Loop & Electronics
  • Weigh Vehicles & Cargo without Stopping
  • Integrate Sensors into Existing Automated Process
  • Couple Sensors with Gate Arms, RFID & Camera Technology
  • Installation does not Require Pits or Drains
  • High degree of accuracy
  • Stable readings with environmental fluctuations of temperature
  • Minimally invasive in-ground installation
  • Maintenance free operation


LS-WIM® Low Speed Scale

Strip Sensors

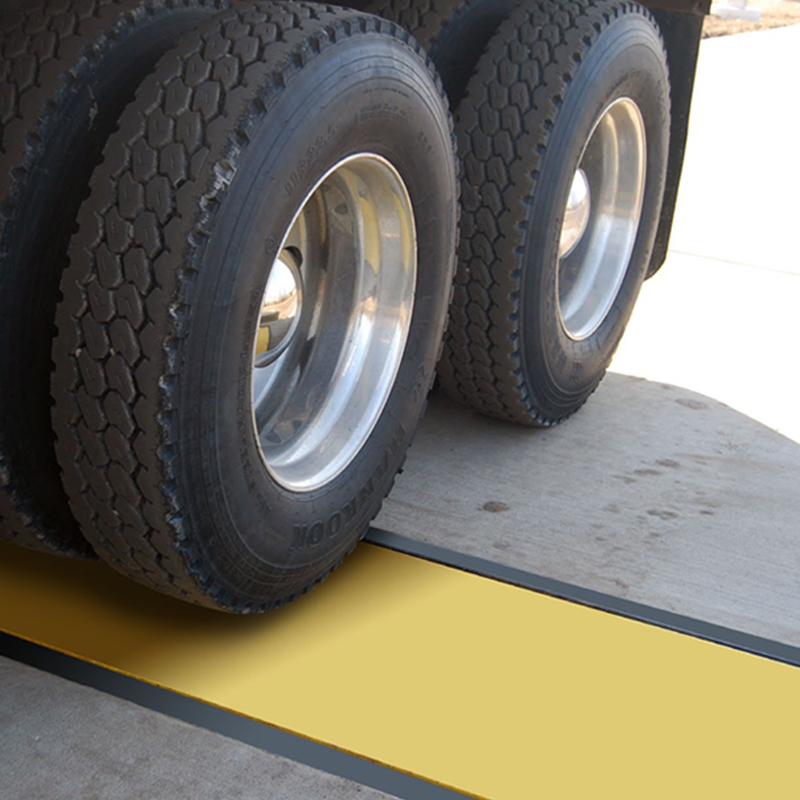

LS-WIM® Axle Scales for Ports and Gates

Typical Scale Configuration
LSWIM INSTALL

LSWIM (Low Speed Weigh-In-Motion) strain gauge technology is also incorporated into axle scales for low speed applications :
  • WIM site installation employs single axle scale, loop, and electronics
  • High degree of accuracy at low speeds
  • Stable readings with environmental fluctuations of temperature
  • Small Scale Footprint vs. Static Scales
  • Durable Platform Construction
  • Simplified Maintenance




LS-WIM® Low Speed Scale

LS-WIM® Low Speed WIM Scale

WIM Scales for Ports & Gates App Notes

Weigh-In-Motion Sensors for Ports & Gates

Sea ports and intermodal terminals around the world utilize Weigh-In-Motion (WIM) Sensors to process vehicles and cargo faster for gate in/gate out transactions. Intercomp sensors are installed in channels cut in existing vehicle lanes and can be integrated with a variety of electronics platforms and gate or TOS software.

Low-Speed Weigh-In-Motion Axle Scales for Gate Transactions

Sea ports and intermodal terminals around the world utilize Low-Speed Weigh-In-Motion Axle Scales to process vehicles and cargo faster for gate in/gate out transactions. Intercomp LS-WIM® Axle Scales require less civil works than a static truck scale and can be incorporated into automated in-gate processes.

Resource Library

Publications We have many other published resources including a variety of literature, technical articles, application notes, videos, vehicle scale basics guides, and certification notes.

Please VISIT OUR RESOURCE LIBRARY to learn more about ITS/Enforcement Scale applications, examples, case studies and specifications.

WIM Scales for Ports & Gates Overview

Contact Intercomp for WIM Scales for Ports & Gates Today

At Intercomp, we manufacture state-of-the-art WIM Scales & Sensors for a wide range of industries throughout the world. Our Weigh-In-Motion (WIM) Strip Sensors can provide quick and accurate weight measurements at speeds up to 80 mph (130 km/h).

Get in touch with our sales team for more information or further pricing details regarding our accurate and reliable Weigh-In-Motion options. Intercomp is the industry’s most trusted supplier of technologically advanced WIM Vehicle Scales & Sensors.
