close up image of an aircraft scale

Aircraft Scales for eVTOL

Click image to enlarge
Price Each: Call for Price
Quantity:

eVTOL Scales Description

An electric vertical take-off and landing aircraft is a variety of VTOL aircraft that uses electric power to take off and land vertically and to hover. This technology emerged due to advances in electric propulsion and the growing need for new vehicles for air mobility. Since the concept of eVTOL aircraft emerged in 2009, there has been a significant increase in interest among aircraft manufacturers for eVTOLs. Because aircraft weights have a dramatic effect on lift, propulsion, control (pitch, roll, yaw), and battery longevity, weight and balance procedures are a critical part of any development program. About one-third of the gross weight consists of just the airframe. While just a prototype, the engineers will try to find any weight savings they can muster. This translates to increased payload, passengers or longer flight duration.

Intercomp is the world's leading manufacturer of aircraft weighing systems. Our scale design is recognized by our customers to be the most robust and reliable aircraft weighing systems currently offered. Our aircraft scales accurately weigh everything from helicopters, single engine aircraft, and UAV's to the world's largest passenger aircraft, the Airbus A380. Aviation scale accuracy requirements are critical, one-tenth of 1 percent (0.1 %). An accurate scale weight will allow an accurate center of gravity calculation.

If you have specific questions regarding our platform aircraft scale options get in touch with us for more information regarding your eVTOL scale requirements.

Intercomp Aircraft Scales for eVTOLs

Whether your facility requires low or mid-capacity aircraft scales, Intercomp scales for eVTOLs provide many beneficial qualities. Each of our scale systems are built to provide accurate weight results and efficiencies that are ideal for research and development. Additional advantages include:
  • GaugeSense - The fully electronic platform scales use strain gauge technology maintaining accuracy across the capacity range of the scales.
  • Safety Benefits – When designing an eVTOL, knowing aircraft weights during the development phase will assist in providing a safe, reliable and compliant vehicle.

Aircraft Scale Options

Intercomp’s aircraft scales are built to the industry’s highest quality standards. We provide several scale options across a range of platform sizes and capacities to meet your specific eVTOL requirements. No matter the size of your facility, Intercomp provides a range of commercial aircraft scales that produce accurate results for you.

Get in touch with our sales team to determine which one of our weighing solutions is the best option for your business.

ACII™ Aircraft Scales for eVTOL Weighing

The ACII™ Series Scales are a low cost and reliable scales with pad capacities of from 1,500 lb (750 kg) to 5,000 lb (2,500 kg) available to operators for weighing light aircraft to determine center of gravity.
  • 1,500 lb (750 kg) | 2,500 lb (1,700 kg) | 5,000 lb (2,500 kg) Pad Capacities
  • Accuracy of ±0.1% of Reading
  • Large, Easy-to-Read, LCD Displays on Scales & Indicator
  • Calculates Center of Gravity
  • RS232 Output on Scales & USB Output on Indicator
  • Indicator Displays Individual & Total Weight
  • Standard AA Rechargeable Batteries Last up to 300 Hours in Scales

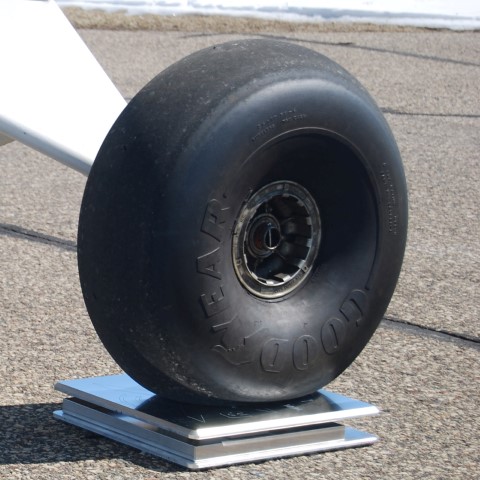

ACII eVTOL Aircraft Scale


ACII™ Aircraft Scale

AC15-LP™ Aircraft Scales for eVTOL

The AC15-LP™ combines aviation industry leading accuracy in a platform that weighs just 39 lb (18 kg). The low profile platform eliminates the need for long ramps and enables the aircraft to be easily towed on to the weighing surface.
  • Accuracy of ±0.1% of Reading
  • 2,500 lb (1,250 kg) | 5,000 lb (2,500 kg) | 10,000 lb (5,000 kg) | 15,000 lb (7,500 kg) Pad Capacities
  • Temperature Compensation, Auto Leveling & Auto Calibration Correction
  • Large, Easy-to-Read, LCD Display
  • Low-Profile, 1.7" (43 mm) Scale Height
  • Platform Weighs only 39 lb (18 kg)
  • Standard AA (LR6) Batteries Last up to 200 Hours in Scales
  • Certified Intrinsically Safe Scales Available

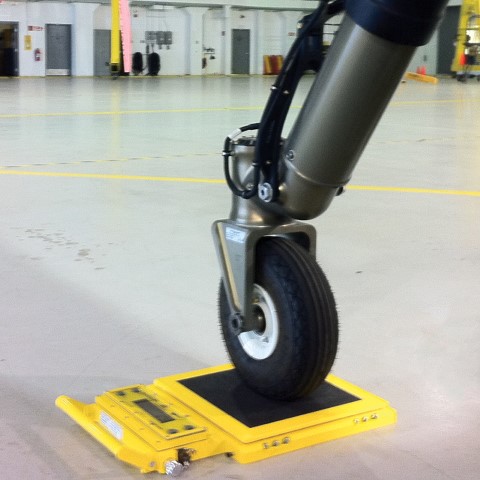

AC15-LP Aircraft Scale


AC15-LP™ Aircraft Scale

AC40-LP™ Aircraft Scales for eVTOL

The AC40-LP™ scale is designed with a platform size and weight capacities that are able to handle most any job.
  • Accuracy of ±0.1% of Reading
  • 30,000 lb (15,000 kg) | 40,000 lb (20,000 kg) Pad Capacities
  • Temperature Compensation, Auto Leveling & Auto Calibration Correction
  • Large, Easy-to-Read, LCD Display
  • Low-Profile, 1.7" (43 mm) Scale Height
  • Standard AA (LR6) Batteries Last up to 200 Hours in Scales
  • Certified Intrinsically Safe Scales Available
  • Platform Weighs 49 lb (22 kg)

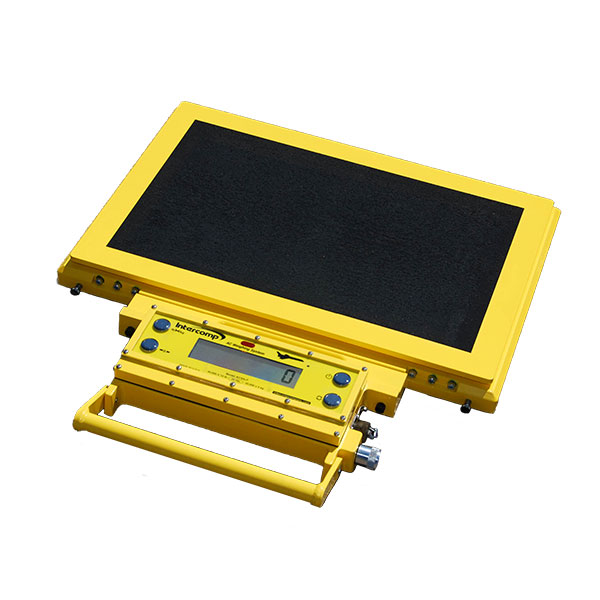

mid capacity Aircraft Scale


AC40-LP™ Aircraft Scale

Jack Weigh Kits for eVTOL Weighing

Jack weigh kits for weighing eVTOL aircraft are convenient and simple to use, requiring less space than pad scales since no towing room is required. By simply placing the load cell on top of the jack, the weight data is measured and transferred wirelessly.

evtol jack weigh kit


Jack Weigh Kits

Contact Intercomp

Contact Intercomp for Precision eVTOL Platform Scales Today

At Intercomp, we offer the most comprehensive line of Aircraft Platform Scales in the industry. Our platform scales for aircrafts can accurately weigh everything from helicopters, single engine aircraft, and UAV's to the world's largest passenger aircraft, the Airbus A380.

Contact our sales team for more information regarding our accurate and dependable eVTOL Platform Scale options, or to request a quote for further pricing details today. Intercomp is the industry’s most trusted supplier of technologically advanced low profile and high capacity Aircraft Platform Scales.
